Force, Thrust, and Pressure

Force, Thrust, and Pressure

Choosing the right tool for an application requires an understanding of the relationship between the Force (thrust) created Drive System and Pressures (PSI) within the Material Containment Unit (MCU).

F (force) = P (pressure) x A (area) | Albion Engineering Equation

Above is the standard engineering equation we use every day at Albion.

2" Diameter, 2 5/8" Diameter, 3 3/8" Diameter

Note the decrease in pressure as the barrel increase in size

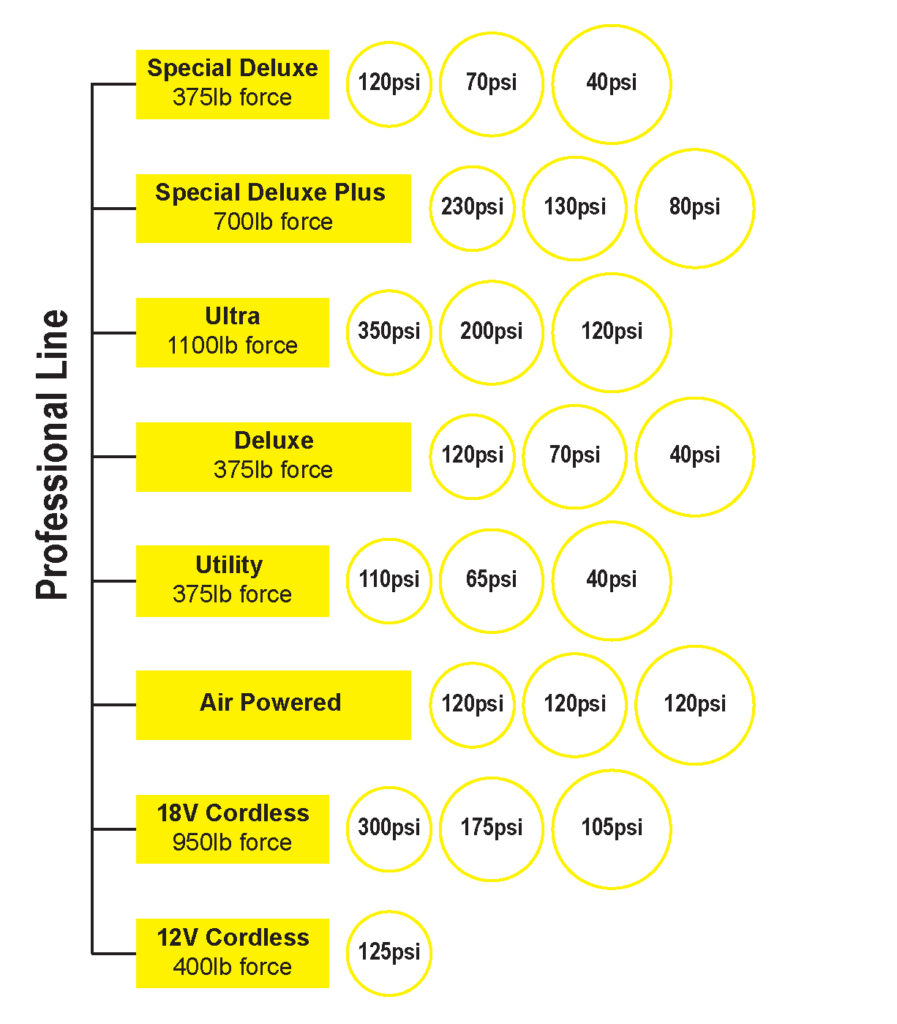

Professional Line PSIs (Pounds Per Square Inch) - Ultra, Deluxe, Special Deluxe Plus, Special Deluxe, Utility, and More
Albion B-Line Caulk Gun PSI Force Units - B1 (7:1), B8 (8:1), B12 (12:1), B18 (18:1), and B26 (26:1)

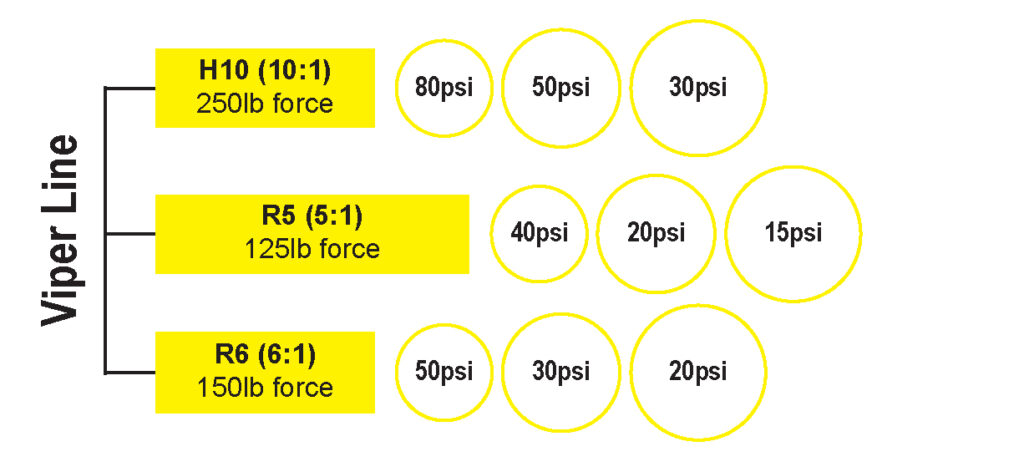

Albion Engineering Viper Gun PSI Force Units - H10 (250lb Force), R5 (125lb Force) & R6 (150lb Force)
